Enphase IQ Battery 5P

The Enphase IQ Battery 5P takes the opposite approach: instead of one large unit, you get a 5 kWh building block designed to scale. Six embedded microinverters live inside each unit, so the battery essentially brings its own power electronics with it — a natural fit if your solar array already runs on Enphase microinverters, since everything speaks the same language.

That modularity is the 5P’s real advantage. Homeowners who aren’t sure how much backup they’ll need can start with one unit and add more later, rather than committing to a fixed capacity up front. It won’t match the Powerwall 3‘s single-unit output or storage, and it leans on Wi-Fi rather than cellular for connectivity — but a 15-year warranty, the longest in this comparison, says a lot about how Enphase expects these units to hold up over time.

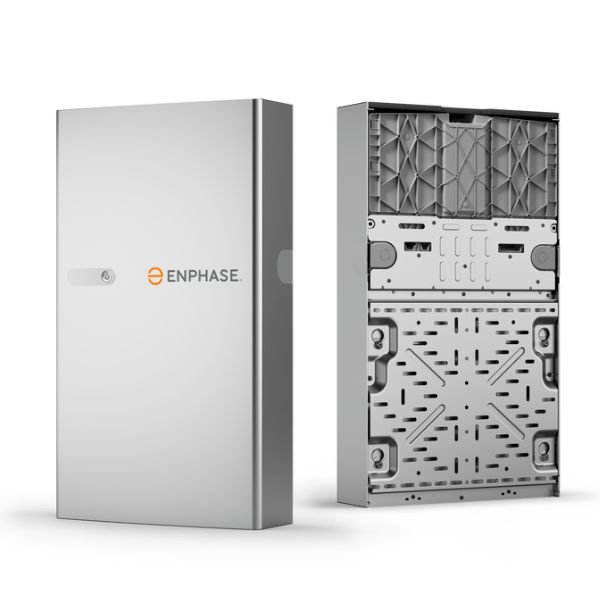

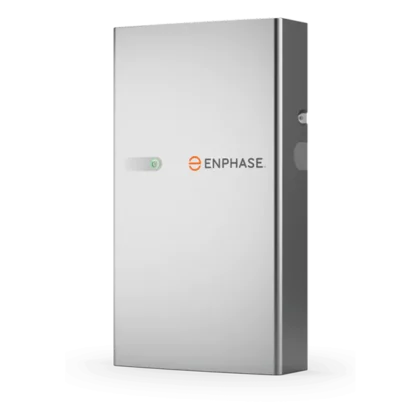

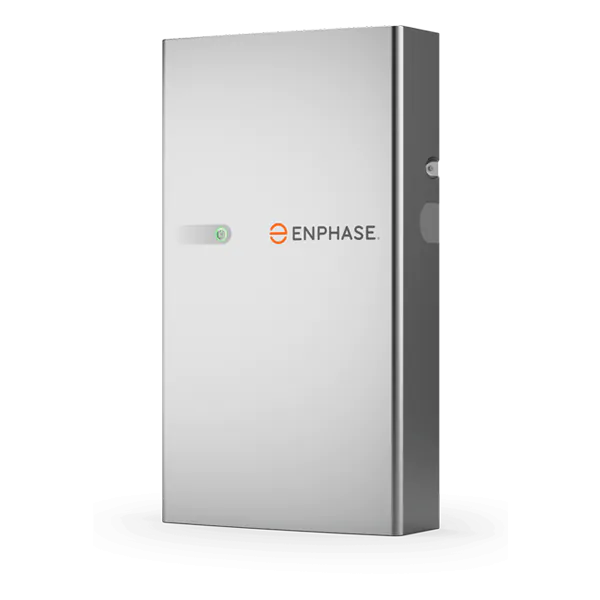

Enphase IQ Battery 5P Photos

✅ Pros:

Highly modular (add units incrementally)
15-year warranty (longest in class)
passive cooling (no fans/moving parts)
field-replaceable components
six embedded grid-forming microinverters for redundancy

❌ Cons:

Lower per-unit capacity means more units needed for whole-home backup
requires IQ System Controller 3/3G
Wi-Fi only (no cellular backup)

Product Information

Chemistry:
Lithium Iron Phosphate (LFP), cobalt-free
Usage Capacity:
5.0 kWh usable (total = usable; modular, stack in 5 kWh increments)
Price:
~$3,300–$3,930 (equipment only; varies by retailer)
Price per kWh:
~$1,344/kWh (2024 EnergySage market average, installed); raw equipment cost runs closer to $650–$780/kWh
Best Use Case:
Enphase microinverter households modular/scalable backup retrofits

Performance

Round-Trip Efficiency:
90% AC (up to ~96% DC-side, per some regional datasheets)
Depth of Discharge:
100%
Continuous Power Output:
3.84 kW/kVA continuous; 7.68 kVA peak (3 sec), 6.14 kW peak (10 sec)

Physical Specifications

Indoor/Outdoor Rating:
NEMA 3R — rated for both indoor and outdoor installation

Durability & Environmental

Fire Safety Certification:
UL 9540A (Large-Scale Fire Testing & Reduced Separation Distance), per 2021 IRC/IFC and 2023 NFPA 855

Compatibility

Inverter Compatibility:
Six embedded IQ8D-BAT grid-forming microinverters; integrates with IQ8 Series Microinverters, IQ System Controller 3/3G, IQ Combiner 5/5C
Coupling Type:
AC-coupled
Stackable/Expandable:
Yes — modular, expandable in 5 kWh increments

Warranty

Product Warranty:
15-year limited warranty, up to 6,000 cycles (≈73.3% capacity retention at year 10)
